Registration: N3688M
Serial Number: 12-2634
Aircraft Total Time: 5649 hours
Engine Time: 402 Since New 150HP 0320 Lycoming

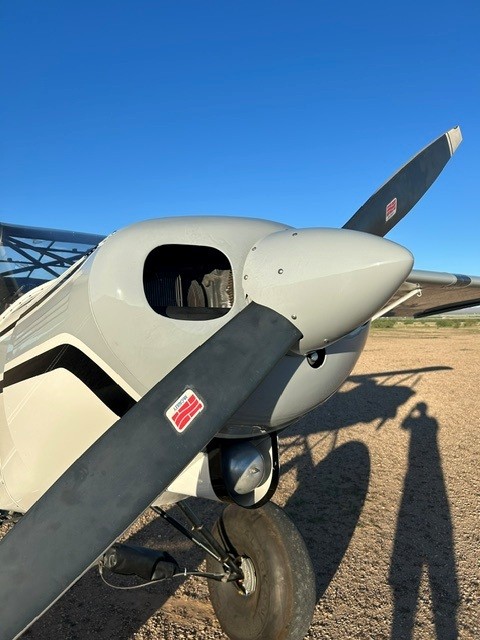

New McCauley 8142 Propellor
Annual Due: June 2027
Useful Load: 704 lbs
Lightweight panel
Garmin 205 Com with intercom
Garmin GTX 327 Transponder
Garmin GDL 82 ADSB
Garmin 600 Color Moving pap GPS in panel
Complete rebuild in 2026
New Dakota Cub fuselage with custom modifications
Fittings for PA-18 main landing gear
PA-18 front seat
Left hand seaplane door (So two doors)

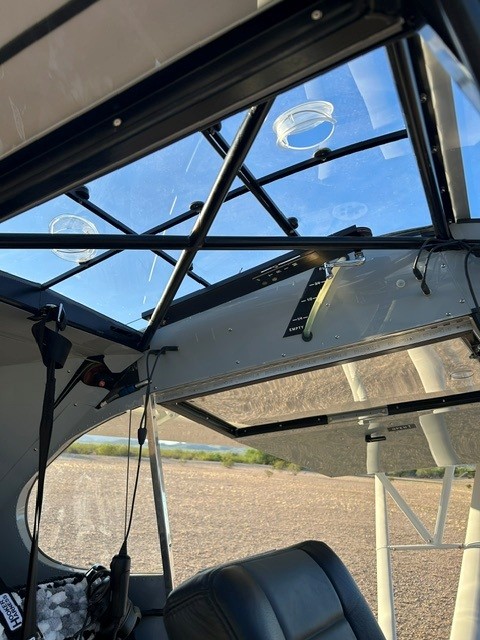

Overhead X Bracing
Skylight
Welded rear seaplane fittings
PA-18 elevator system
PA-18 flap control system
Removable baggage area crossbar
Rear baggage door
Welded shoulder harness brackets
Lower rear metal rear access panel
Gross weight increase to 1935 Lbs

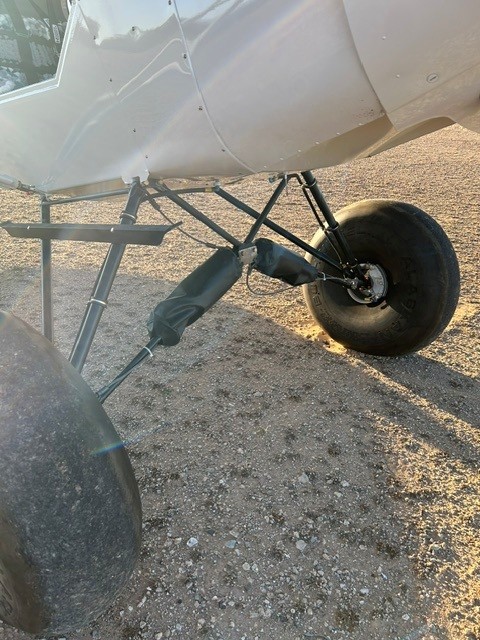

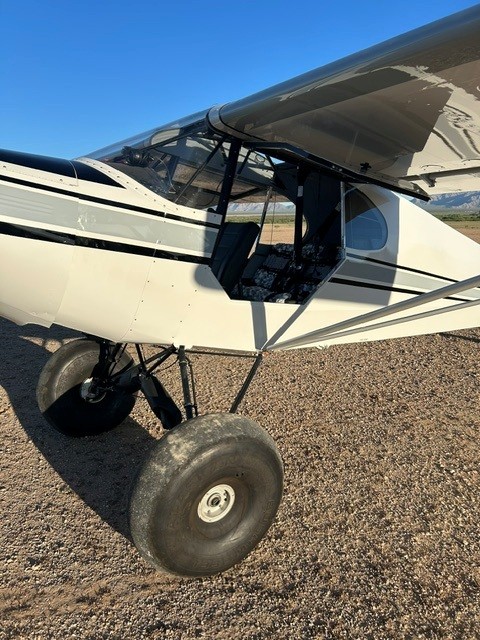

PA-18 landing gear
New Atlee Dodge boarding step R/H Side
New Landing gear cabane

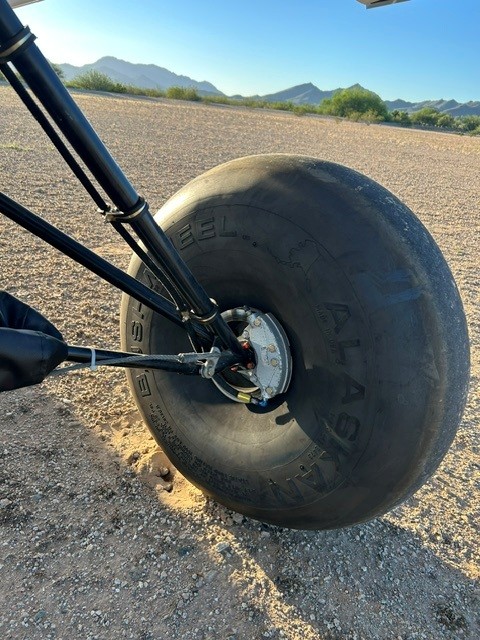

Six bolt Cleveland wheels
Double puck brakes
29" Bushwheels
Atlee landing gear safety cables
Brake Boosters
New Firewall
New nose bowl
New engine cowlings (Sides, upper, lower anbd rails)
New boot cowlings

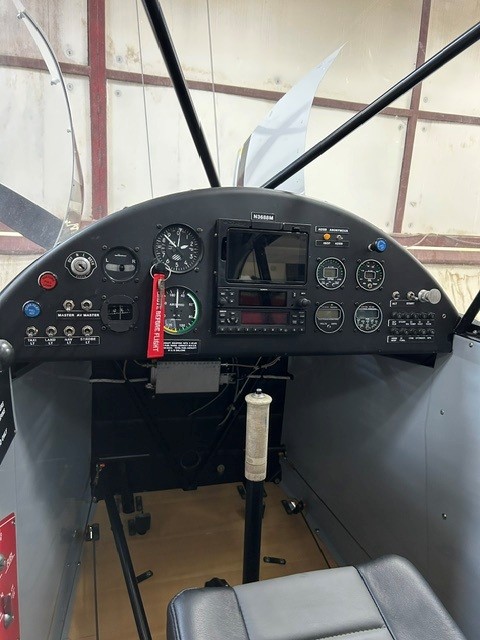

New instrument panel
PA-18 adjustable seat with approved under seat battery rack and PMA Hawker sealed battery

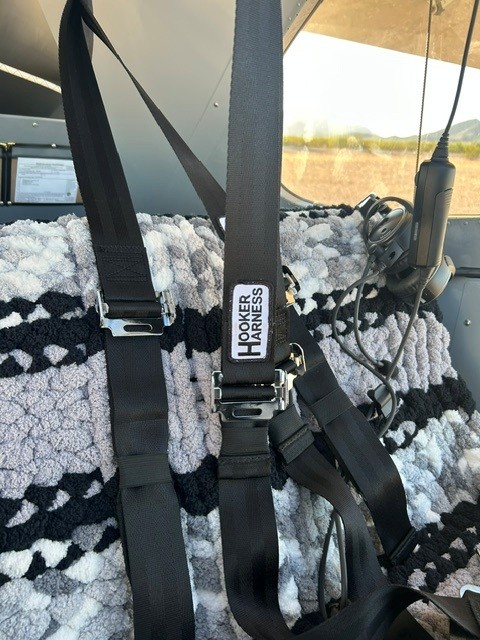

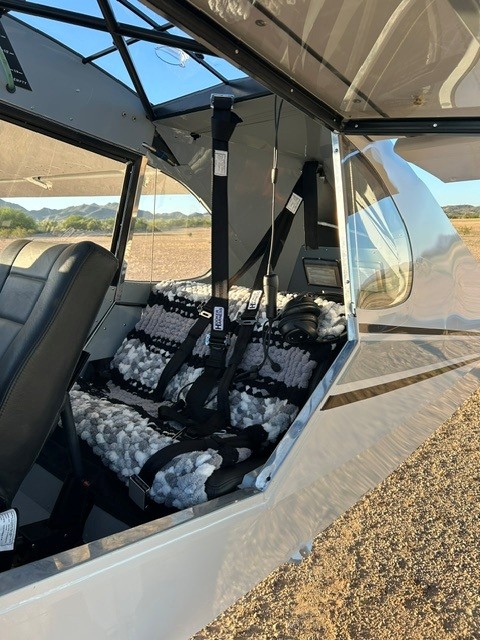

Hooker harnesses front and rear
All wiring, circuit breakers and switches replaced
New engine control cables
NEW EI Tach, volt/amp meter/oil temp/oil pressure/fuel flow and totalizer gauges
New leather interior
New metal interior panels
All glass replaced
New stainless steel flight control cables

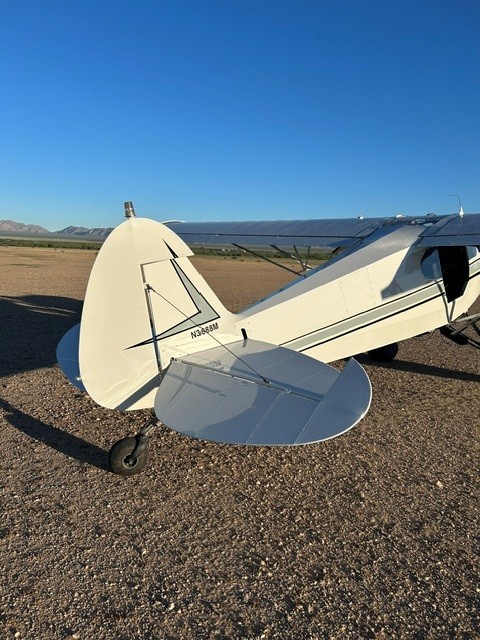

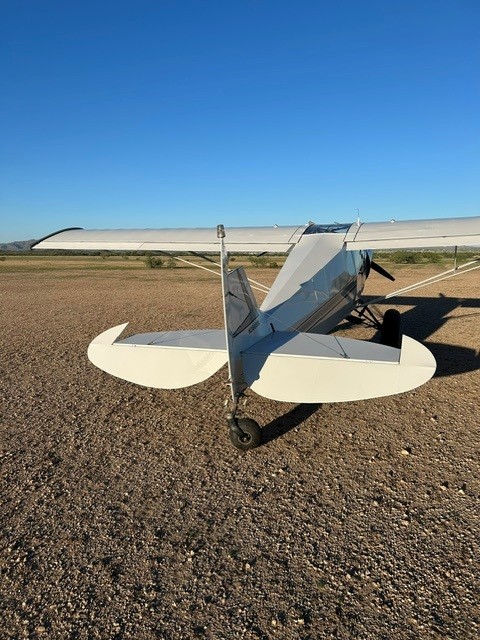

PA-18 horizontal stab' and elevators

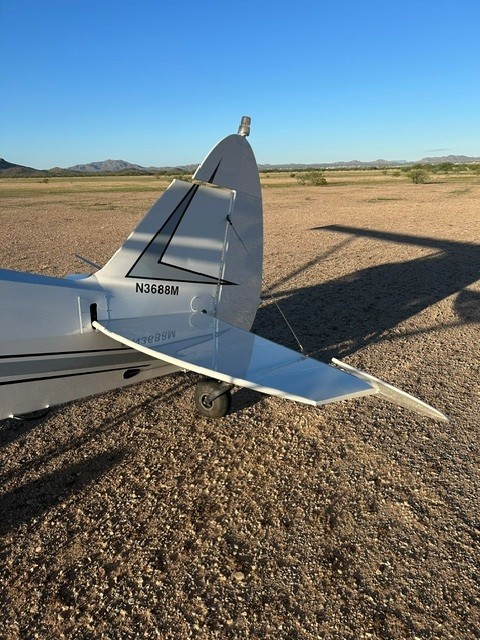

New 4130 Rudder with whelen beacon (Rudder AD does not apply)
Scot 3200 Tailwheel with baby bush fork, wheel, and tire
All parts installed with new hardware
Wings overhauled with new spars and NOS ribs

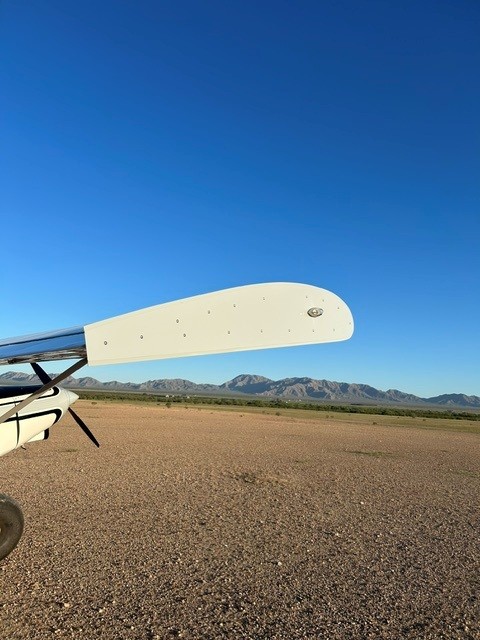

Flaps extended, Ailerons moved outboard and wingtips squared with end plates (Field approved)
Atlee Dodge Long Range Tanks 61 gallons
Atlee Dodge spar reinforcing brackets
Whelen wingtip strobes
L/H Landing light, taxi light with approval for R/H landing light (Not installed)
New Lifetime wing struts and jury struts (Univair)
All hew hardware in wings
Overhauled mags at time of engine install in 2026
Overhauled carburettor at time of engine install in 2026
New Champion spark plugs
Stoddard engine mount (moves engine back 4") Univair
New Dan's gascolator
Overhauled oil cooler
PA-18 exhaust with new muffler and shrouds
New engine baffling (both metal and rubber)
All new hoses and hardware
Skytec lightweight starter
Skytec lightweight alternator
INTERIOR
All nedw leather and matching trim throughout. Rated 10.
EXTERIOR
All new overall white with gray accent and black pinstripe. Rated 10.

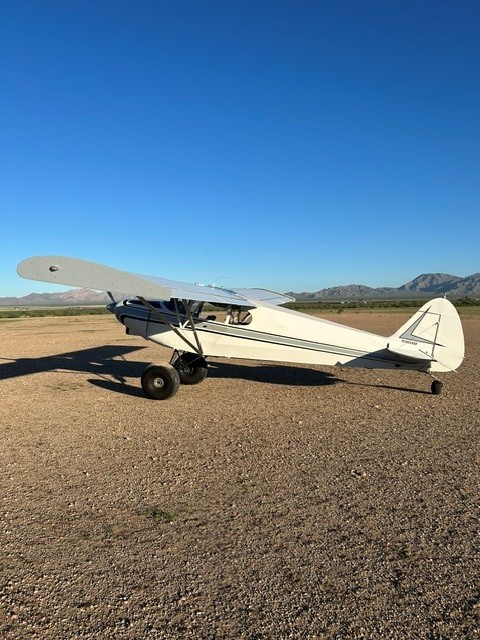

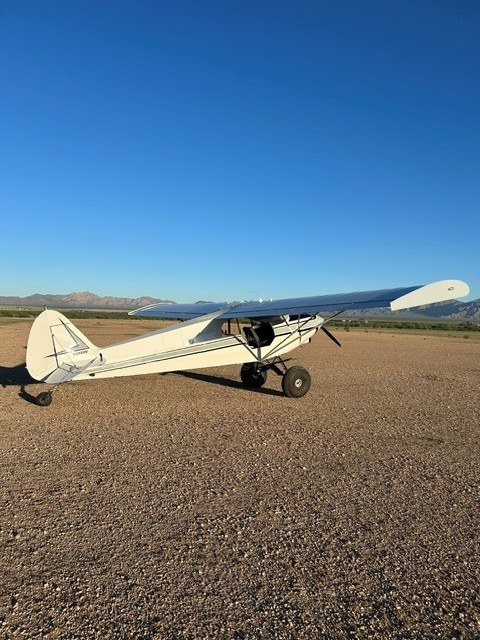

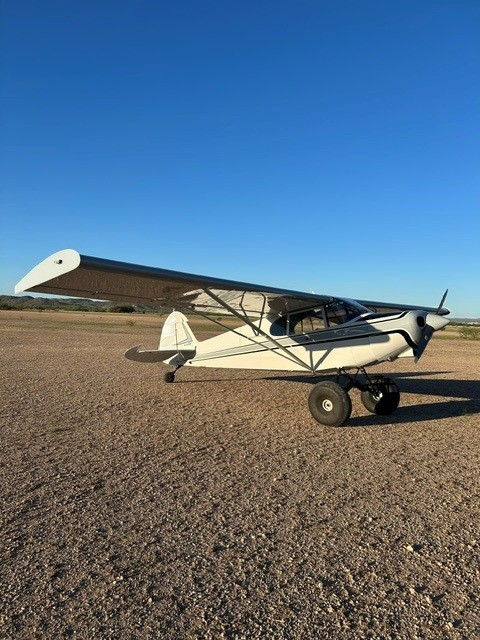

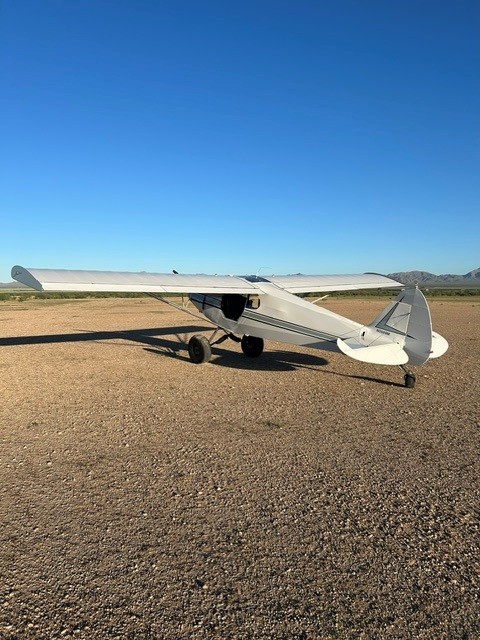

Completely restored in 2026. New fuselage, New covering. New wings,. New tail. Pretty much a new plane. Everything documented and logged. Three seats and the wider cabin that the supercub. For all intents and purposes this is is a new PA-12 Supercub hybrid.
